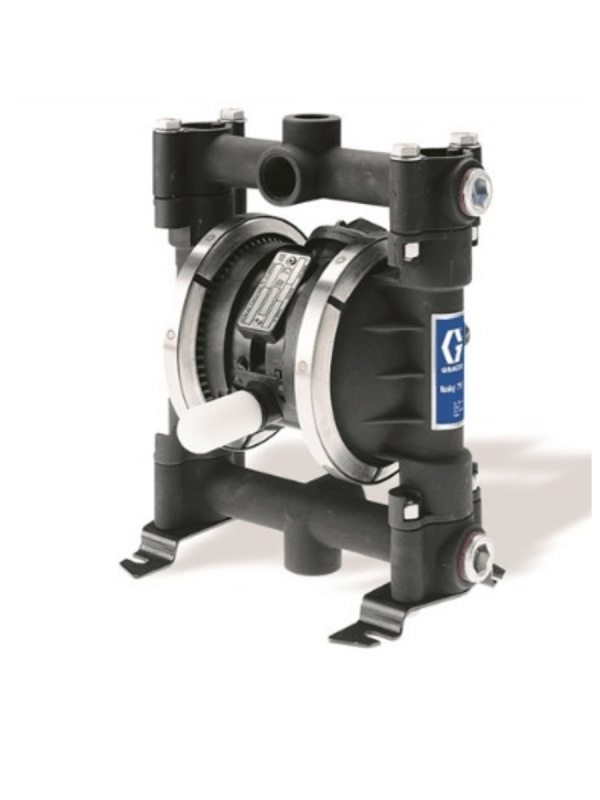

Graco Husky 716 air operated diaphragm pump

1 Reviews

This item is 10-15 days out

Product Code: Graco-241906

Quantity in Stock: 9 in stock!

Qty:

3/4 in (19.05 mm) center- and end-porting
No seals to leak or fail
Quiet running less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
Easy-to-service air valve and ball checks

Husky 716 Air-Operated Diaphragm Pumps
Maximum Fluid Working Pressure	100 psi 7 bar, 0.7 MPa
Air Pressure Operating Range	30 to 100 psi 2.1 to 7 bar, 0.2 to 0.7 MPa
Maximum air consumption	28 scfm 0.672 m³/minute
Maximum free-flow delivery	16 gpm 61 lpm
Maximum pump speed	400 cpm 400 cpm
Gallons (Liters) per cycle	0.04 gal 0.15 l
Maximum suction lift (water with buna balls)	15 ft dry, 25 ft wet 4.5 m dry, 7.6 m wet
Maximum size pumpable solids	3/32 in 2.5 mm
Sound power level (measured per ISO standard 9614–2)
At 70 psi (4.8 bar 0.48 MPa) at 50 cycles per minute	77 dB(A) 77 dB(A)
At 100 psi (7 bar, 0.7 MPa) at maximum cycles per minute	95 dB(A) 95 dB(A)
Sound pressure level (measured 1 m from pump)
At 70 psi (4.8 bar, 0.48 MPa) at 50 cycles per minute	67 dB(A) 67 dB(A)
At 100 psi (7 bar, 0.7 MPa) at maximum cycles per minute	85 dB(A) 85 dB(A)
Inlet/Outlet Sizes
Air inlet size	1/4 npt(f) 1/4 npt(f)
Air exhaust port size	3/8 npt(f) 3/8 npt(f)
Fluid inlet size	3/4 npt(f) 3/4 npt(f)
Fluid outlet size	3/4 npt(f) 3/4 npt(f)
Wetted Parts (in addition to ball, seat, and diaphragm materials, which vary by pump)
Aluminum pumps	aluminum, stainless steel, PTFE, zinc-plated steel aluminum, stainless steel, PTFE, zinc-plated steel
Stainless steel pumps	316 stainless steel, PTFE 316 stainless steel, PTFE
Non-wetted external parts
All pumps	polypropylene, stainless steel, polyester (labels), nickel-plated brass, epoxy-coated steel (feet) polypropylene, stainless steel, polyester (labels), nickel-plated brass, epoxy-coated steel (feet)
Weight
Aluminum pumps	8.5 lb 3.9 kg
Stainless steel pumps	18 lb 8.2 kg

Graco Husky 716 air operated diaphragm pump

$975.00
